Specifications Page

Serial Number

95010701

Model Number

H60 48 180 AL O N23 H O

Date

9/8/98

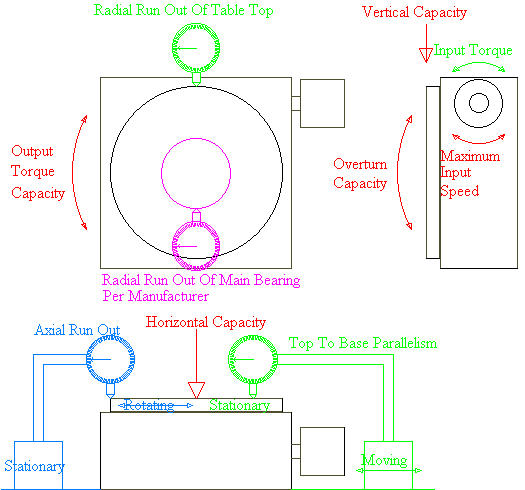

Radial Run Out Of Table Top

0.002" TIR

Axial Run Out Of Table Top

0.0004" TIR

Top To Base Parallelism

0.0007" TIR

Input Torque Required With No Load

12 oz.in

Home switch checked. Approximate Location - "0" marked on OD of table top over center of switch.

Horizontal Capacity

500 lb

Vertical Capacity

200 lb

Overturn Capacity

200 lb.in

Output Torque Capacity

100 lb.in

Absolute Positioning Accuracy

2.2 arc.min

Positioning Repeatability

0.2 arc.min

Maximum Input Speed

1350 RPM

Radial Run Out Of Main Bearing Per Manufacturers Specification

0.0005" TIR
